easyrtk

Aerial Mapping GS-100V LiDAR Solution 360 Degree FOV Laser

Aerial Mapping GS-100V LiDAR Solution 360 Degree FOV Laser

Regular price $11,000.00 USD
Regular price $14,500.00 USD Sale price $11,000.00 USD
Sale Sold out

                         Geosun gAirHawk LiDAR Scanning System GS-100V

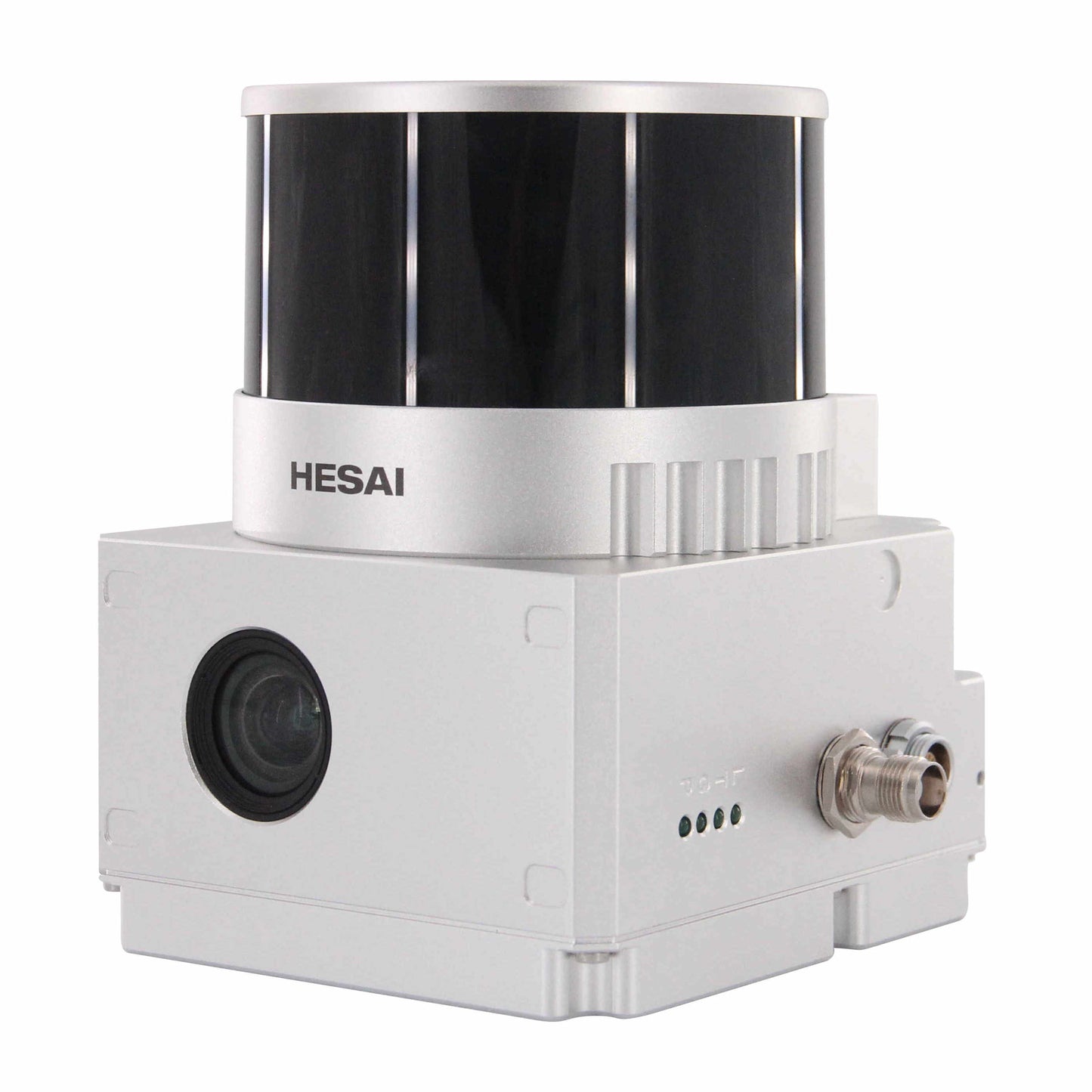

gAirHawk GS-100V is a kind of short-range, compact LiDAR point cloud data acquisition system, integrated HESAI XT16 laser scanner, GNSS and IMU positioning and attitude determination system, and storage control unit, is able to real-time, dynamically, massively collect high-precision point cloud data and rich image information. It is widely used in the acquisition of 3D spatial information in surveying, electricity, forestry, agriculture, land planning.

Specification of UAV LiDAR Scanning System gAirHawk GS-100V

UAV LiDAR Scanning System gAirHawk GS-100V


Item Name

System Parameters


GS-100V

Parameters

Weight

1.4kg

Measuring accuracy

Less than 0.1m @100m

Working temperature

-20℃~55℃

Power range

12V- 24V

Consumption

20W

Carrying Platform

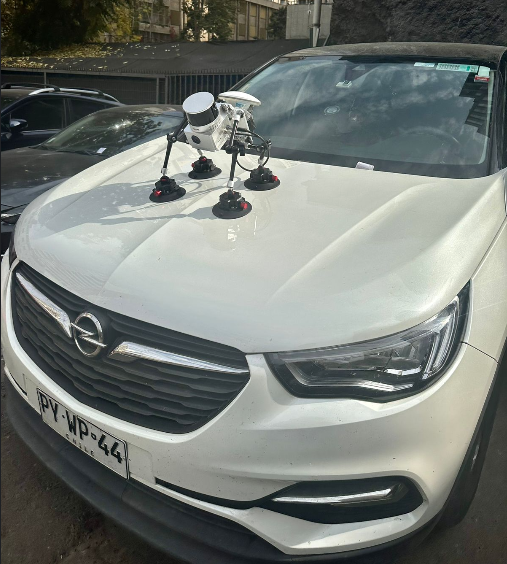

Drone and Vehicle

Storage

64GB storage, maximum support 128GB TF card

Lidar Unit


Measuring Range

80m@10% Reflectivity, max range 120m

Laser class

905nm Class1 (IEC 60825-1:2014)

Channel

16-Channel

Range accuracy

±1cm (typical Value)

Scanning frequency

10HZ, 20HZ

data

Double echo 640,000 Points/Sec

FOV

360°, adjustable

Laser sensor

HESAI XT16

POS Unit

Update frequency

200HZ

Heading accuracy

0.040°

Pitch accuracy

0.015°

Rolling accuracy

0.015°

Position accuracy

≤0.05m

GNSS signal type

GPSL1/L2/L5 GLONASSL1/L2 BDS B1/B2/B3 GAL E1/E5a/5b

Pre-processing software

POS software

Output information: position, speed, attitude

Point cloud software

Output point cloud data format: LAS format, custom TXT format

Camera (built-in)

Trigger Event

Distance or Time trigger

Effective Pixel

26 Mega Pixel & 80 Degree FOV


Application of UAV LiDAR Scanning System gAirHawk GS-100V

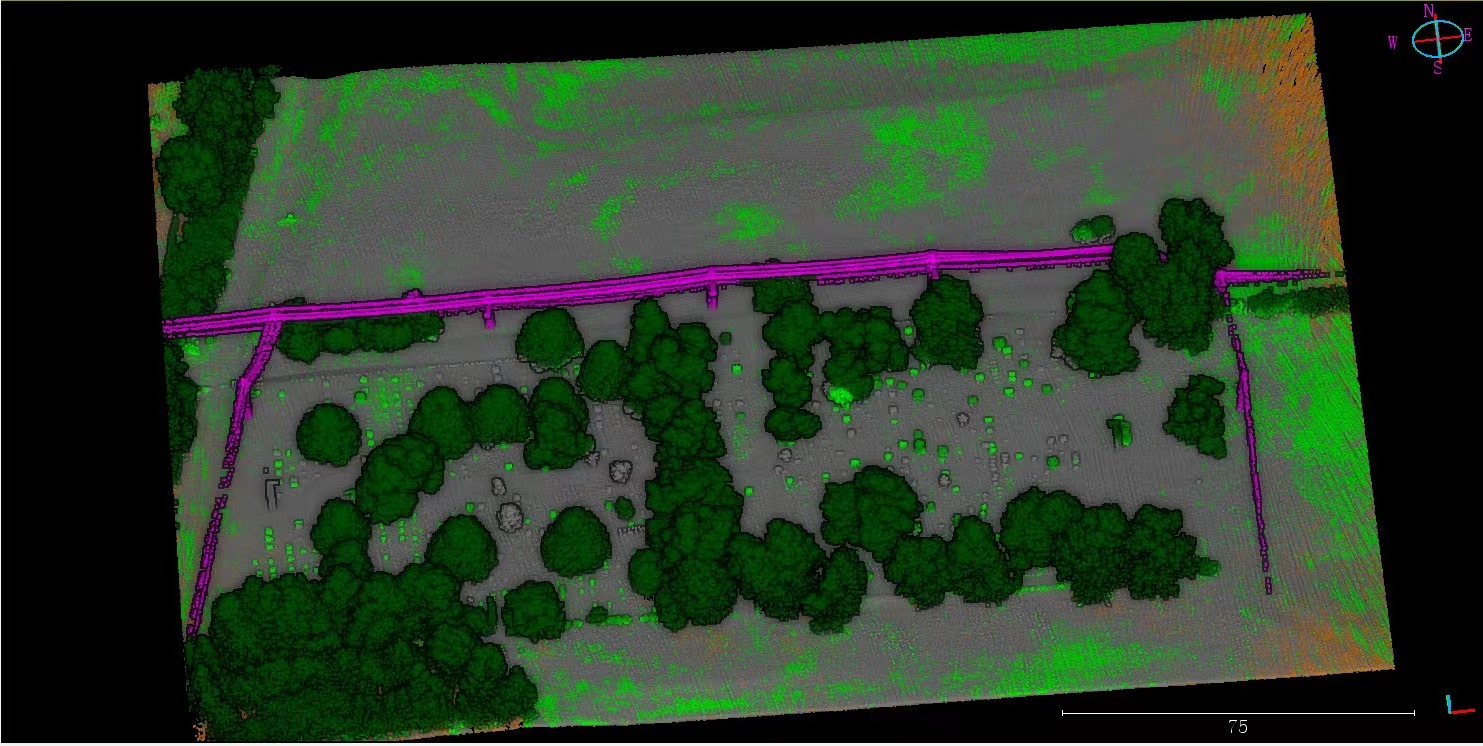

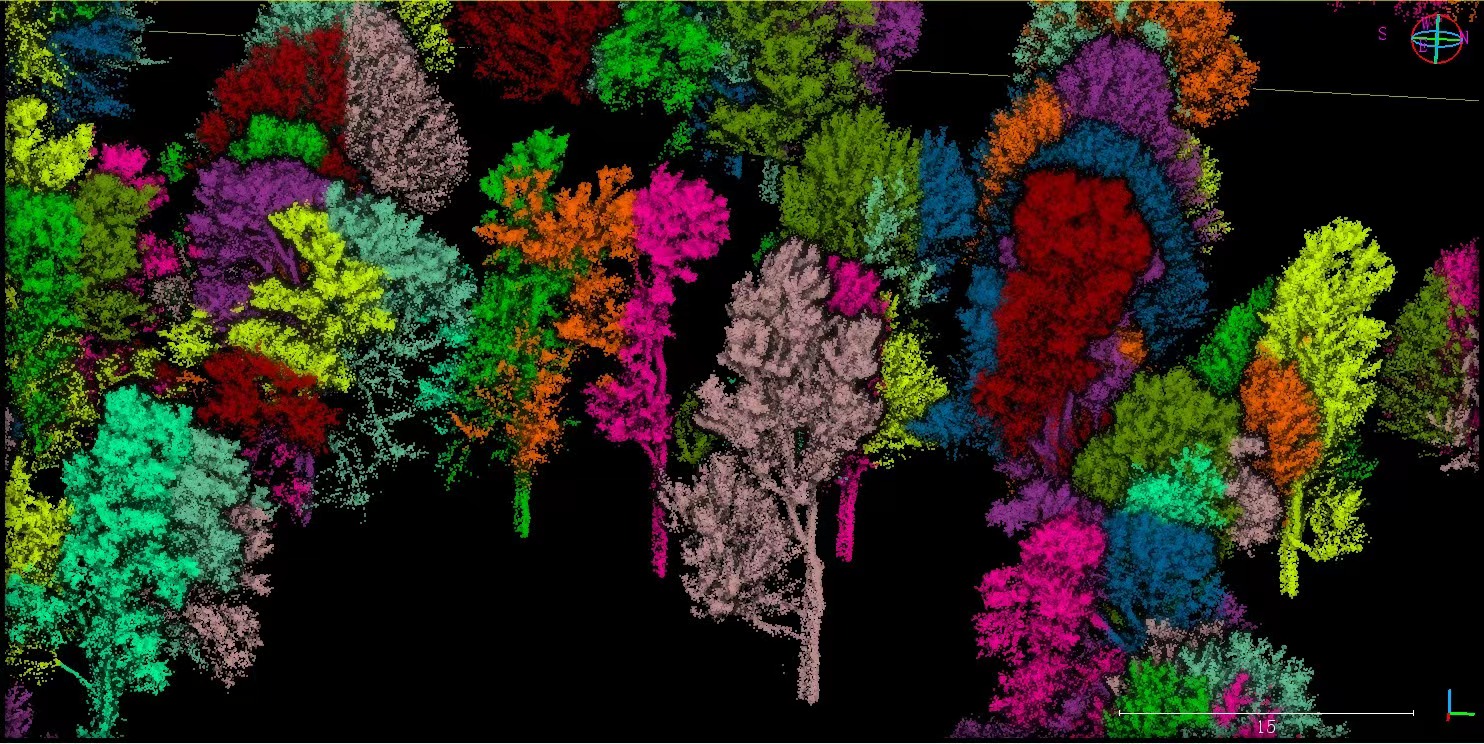

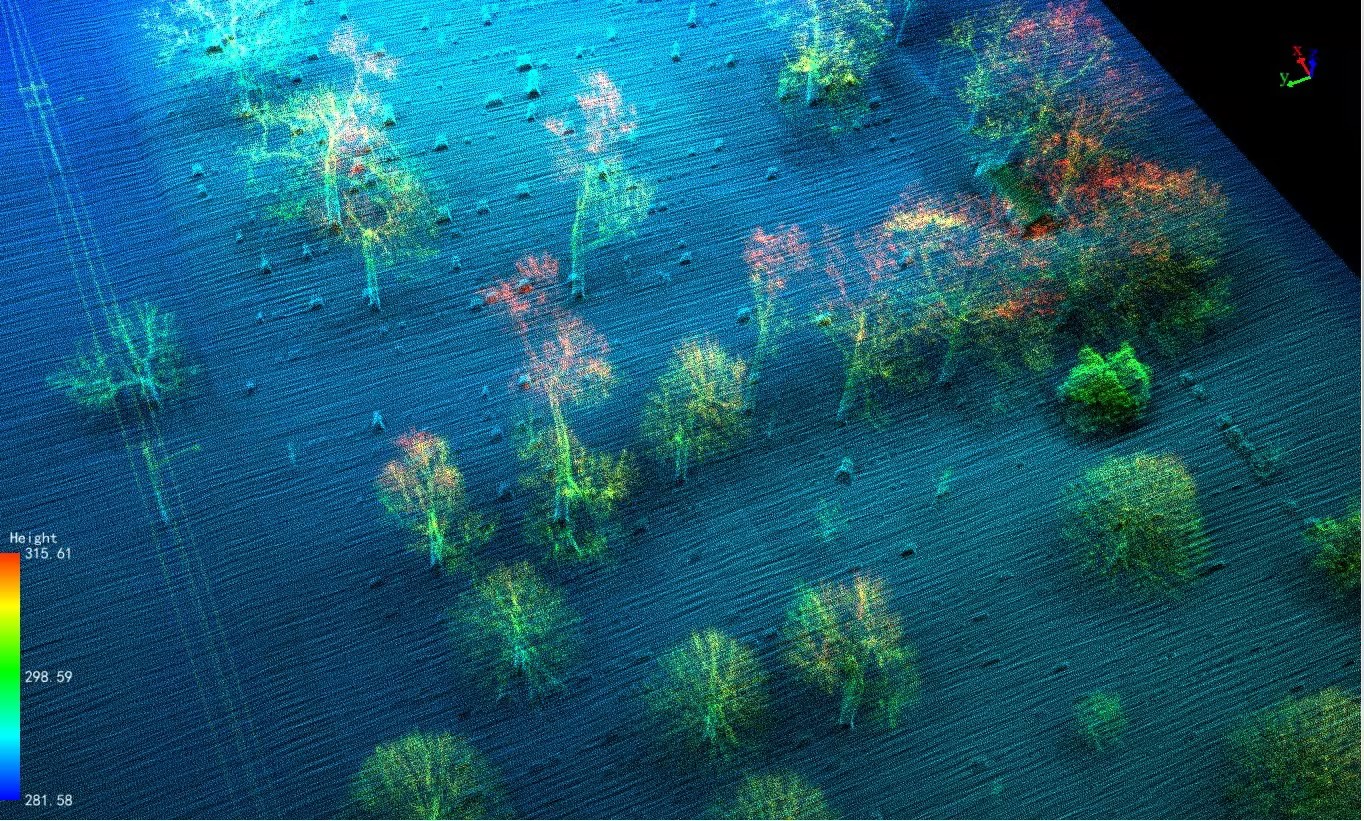

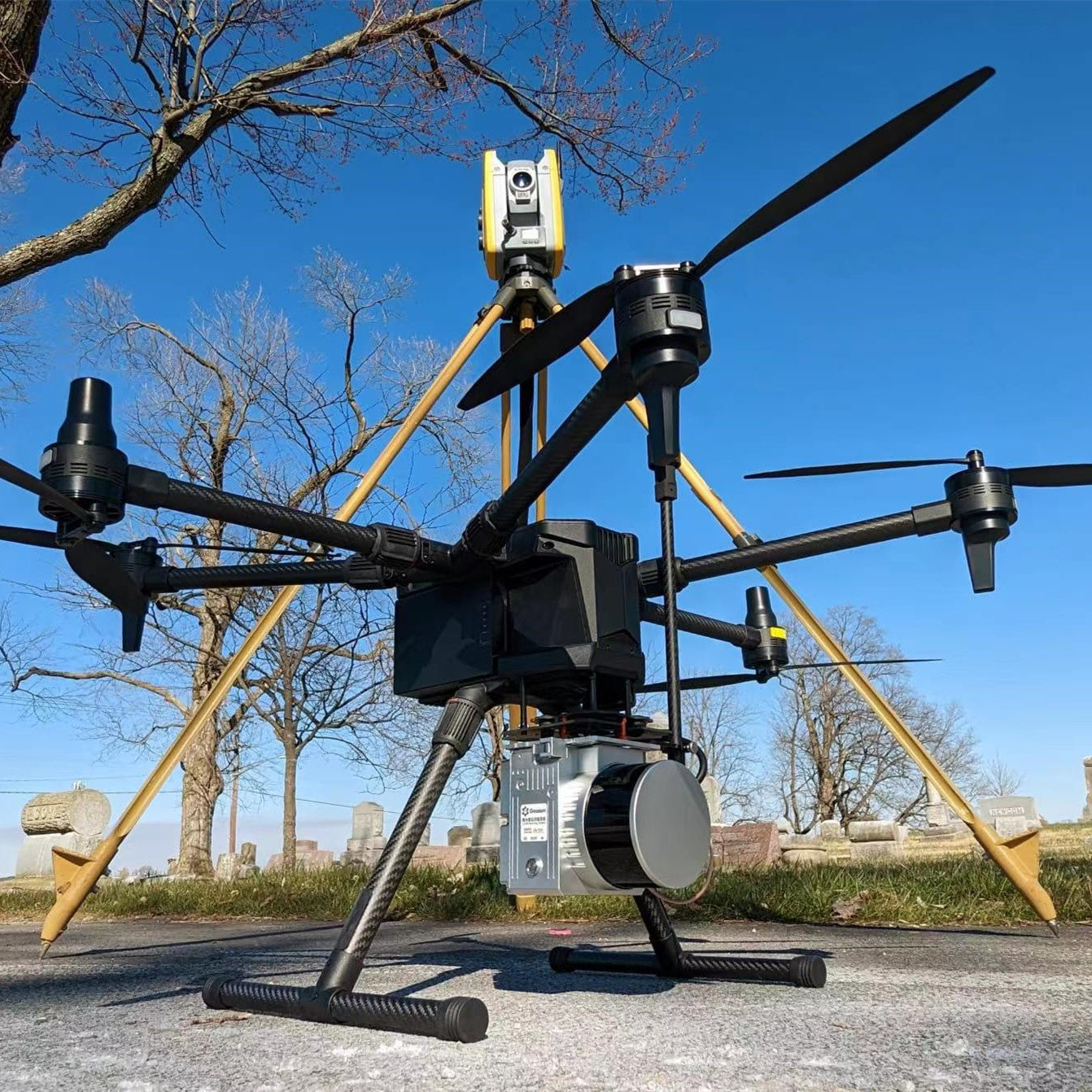

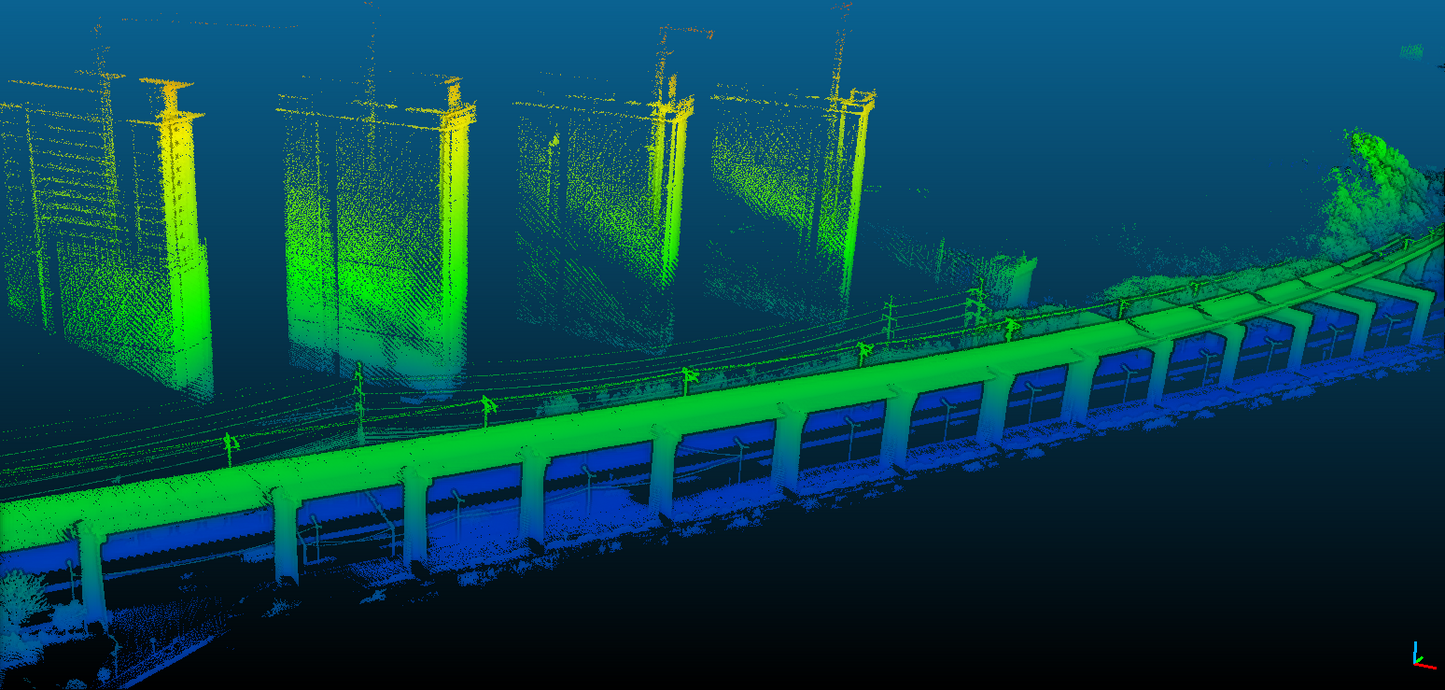

GS-100V LiDAR and GS-850 UAV in the United States, based on high-quality LAS data, using PCA4.2 software for point cloud post-processing, single wood segmentation, point cloud automatic classification, DEM production.

Free Trial Software UAV LiDAR Scanning System gAirHawk GS-100V

Free trial test, achieve high precision

The Guideline of LiDAR Usage and Reference.pdf

Point Cloud Pre-Processing Software Integrated With Trajectory Processing----Geosun Self-developed gAirHawk 5.0
Key Features of gAirHawk 5.0 Software
1. Raw data: intelligently load
2. Four default coordinates
3. Point cloud Optimization
4. Start and stop calculation


Package of UAV LiDAR Scanning System gAirHawk GS-100V

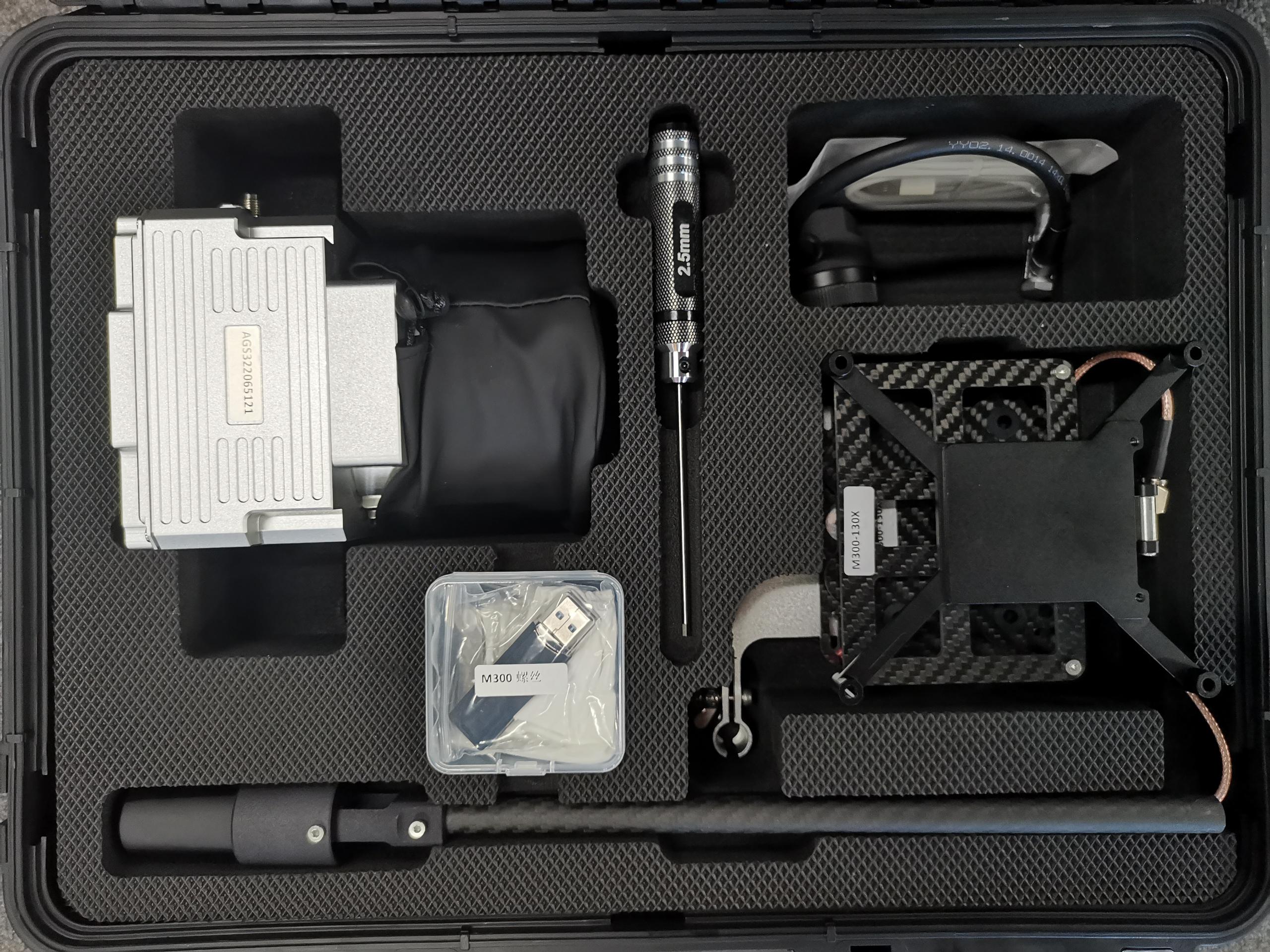

UAV LiDAR Scanning System gAirHawk GS-100V packed by suit case with EVA material liner inside, then covered by hard carton box. It is suitable for air shipment and sea shipment.
